ATMS4012Z Zigbee Smart Timer & Electricity Meter

Products Info

>>   Category:Zigbee Smarter Timer

>>   Download Link

>>   E-mail:aultop@aultop.com.cn

>>   Tel:+86-577-62777339

Share to:

 Get a Quote

GET GUOTES

  X
Submit
  • Feature

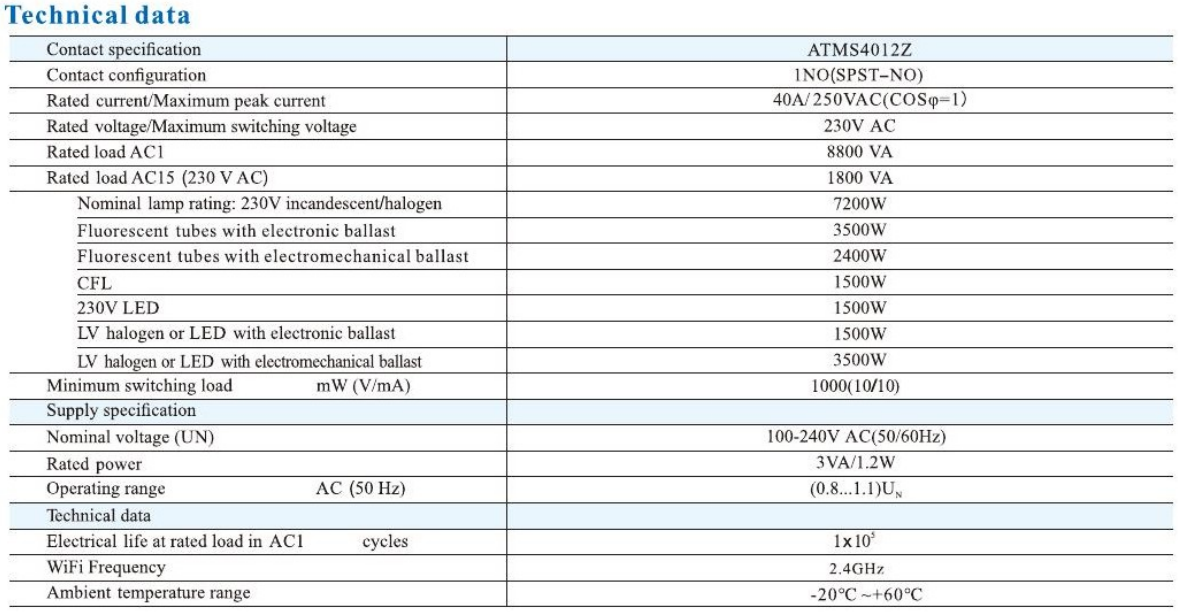

  • Technical Parameters

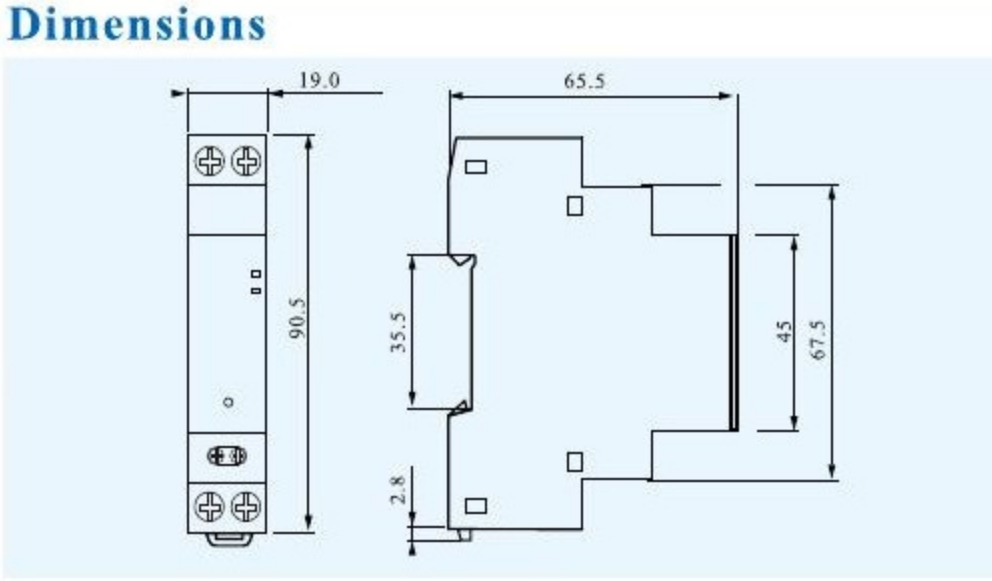

  • Dimensions

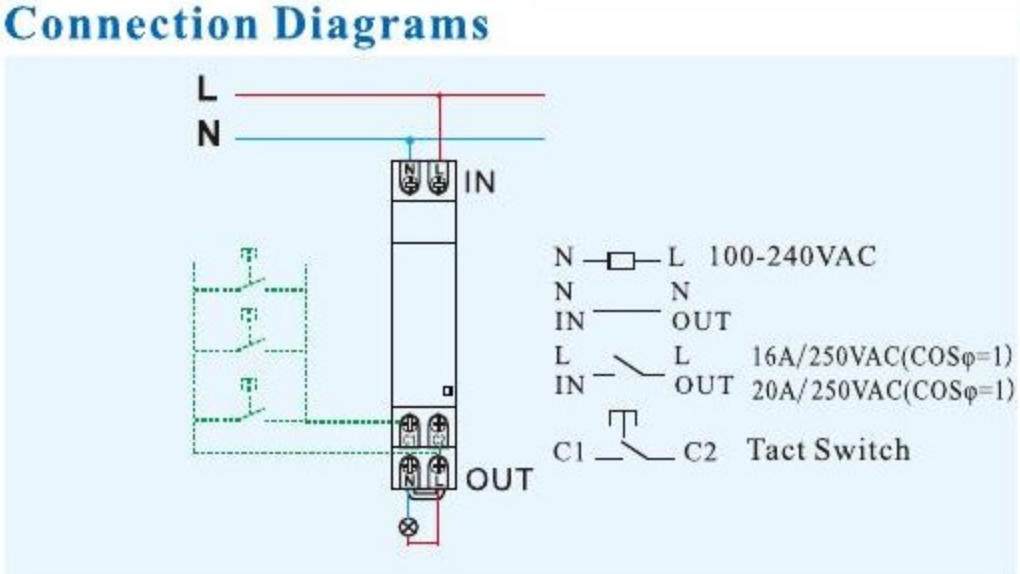

  • Wiring Diagram
  • Function

    • Program timer, can set 30 On/Off programs one day or per week.
    • Count down time, form 1 Min to 23 hours 59 Mins.
    • If the product is disconnected from the network, the timer retains all programs set up by Mobile App and works according to the set programs.
    • The power-on state can be selected by yourself, there are 3 states: 1)Memory(Remember last status), 2)On, 3)Off  The factory default state is Keep last status.
    • The factory default state is Memory(Remember last status).
    • Also can controlled by buttons from terminal C1 and C2.
    • Can be share with 20 users by Mobile App.
    • The products can be worked with Amazon Alexa and Google Assistan.
    • In the App can display: Today Ele (KWh), Current Ele (mA), Current Power (W), Current Voltage (V), Total Ele (KWh)
    • Over current protection function: If the load is more than 48A, the products will off the circuit automatically.
    • Touch button for connect the WiFi, and switch ON/OFF.
