ATMSGZ01 Smart Gateway Zigbee

Products Info

>> Category:Zigbee Smart Gateway

>> Download Link

>> E-mail:aultop@aultop.com.cn

>> Tel:+86-577-62777339

Share to:

Get a Quote

GET GUOTES

X

Feature
Technical Parameters

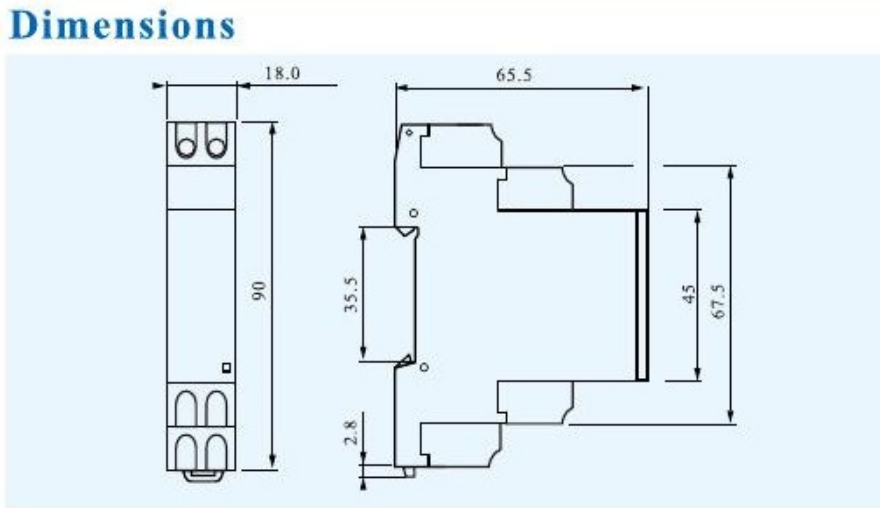

Dimensions

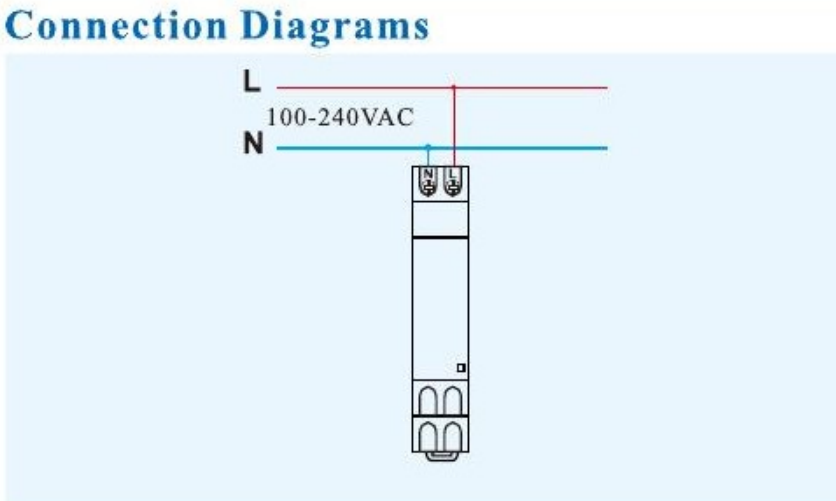

Wiring Diagram

Function
- Mounting From: Din Rail
- Protocol: Wi-Fi, Zigbee
- Can connected all of Zigbee devices.
- Mounting with the Din Rail Zigbee products together, the signal is stronger.
- 1 Module, width 18mm
- Distance: 20-25M radius
- The input Voltage: 100-240VAC
- Wireless connection
Technical data
Nominal Voltage(UN): 100-240VAC 50-60Hz
Operating range AC (50Hz): (0.8...1.1)UN
Rated power: 3VA/1.2W
WiFi Frequency: 2.4GHz
Ambient temperature range: -20C...+60C
