ATMSDM01 WiFi Smart Dimmer Switch

Products Info

>>   Category:WiFi or Zigbee Smart Dimmer

>>   Download Link

>>   E-mail:aultop@aultop.com.cn

>>   Tel:+86-577-62777339

Share to:

 Get a Quote

GET GUOTES

  X
Submit
  • Feature
  • Technical Parameters

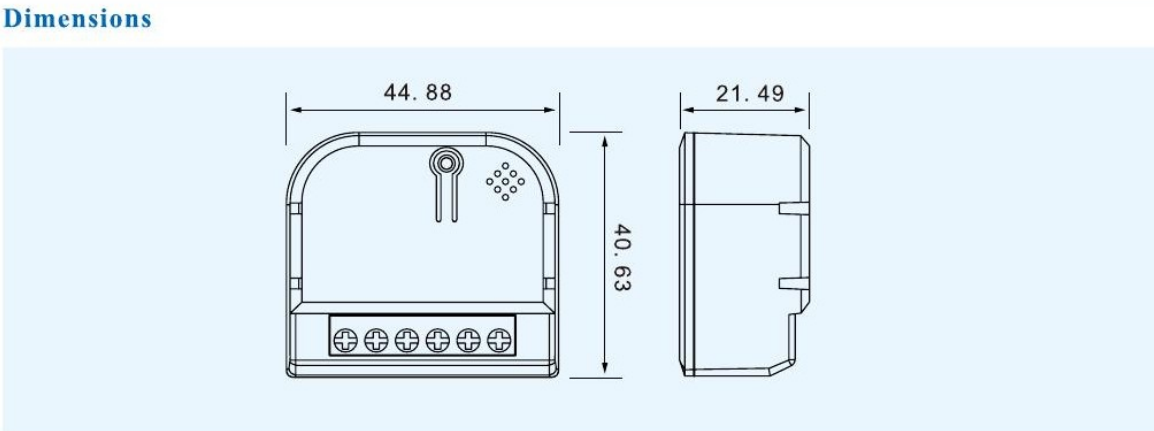

  • Dimensions

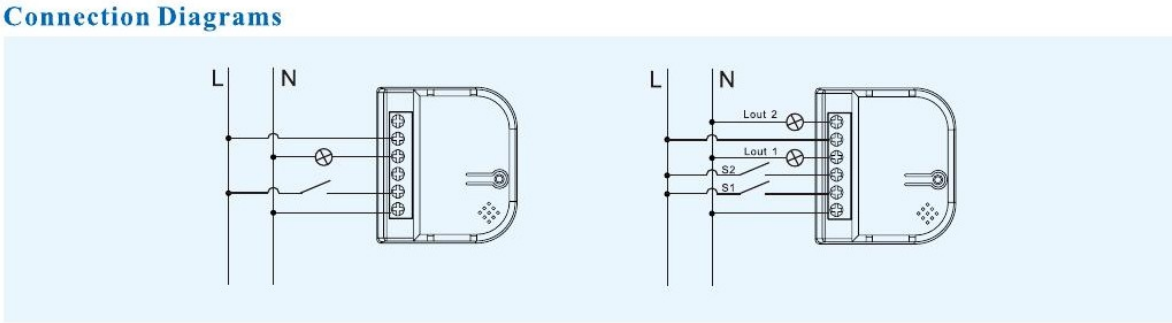

  • Wiring Diagram
  • Function

    • Program timer, can set 30 On/Off programs one day or per week.
    • If the product is disconnected from the network, the timer retains all programs set up by Mobile App and works according to the set programs.
    • With memory function, When the product contact is in the close state, after the power failure, and then call, the product contacts still keep the close state.
    • Can be share with 20 users by Mobile App.
    • Simple installation, no need to change wiring, create a new smart lighting easily.
    • With Bluetooth function, when the WIFI signal is disconnected for 5 minutes, you can use the mobile APP to control the on and off of the product through Bluetooth.

  • Technical data
    Rated Voltage: 100-240VAC 50-60Hz
    Max LED: 150W
    WiFi Frequency: 2.4GHz
    Mounting: Screw mounting
    Ambient temperature range: -10C...+60C
    Dimmer Type: Leading Edge Dimmer
