ATMS1001 WiFi Smart Dimmer Switch

Products Info

>>   Category:WiFi or Zigbee Smart Dimmer

>>   Download Link

>>   E-mail:aultop@aultop.com.cn

>>   Tel:+86-577-62777339

Share to:

 Get a Quote

GET GUOTES

  X
Submit
  • Feature
  • Technical Parameters

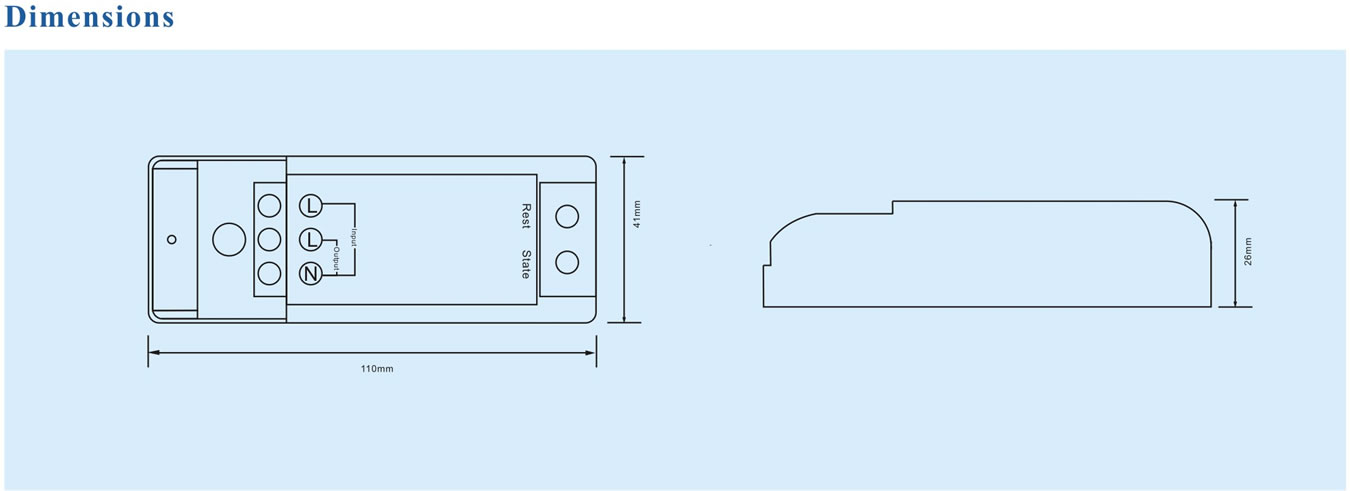

  • Dimensions

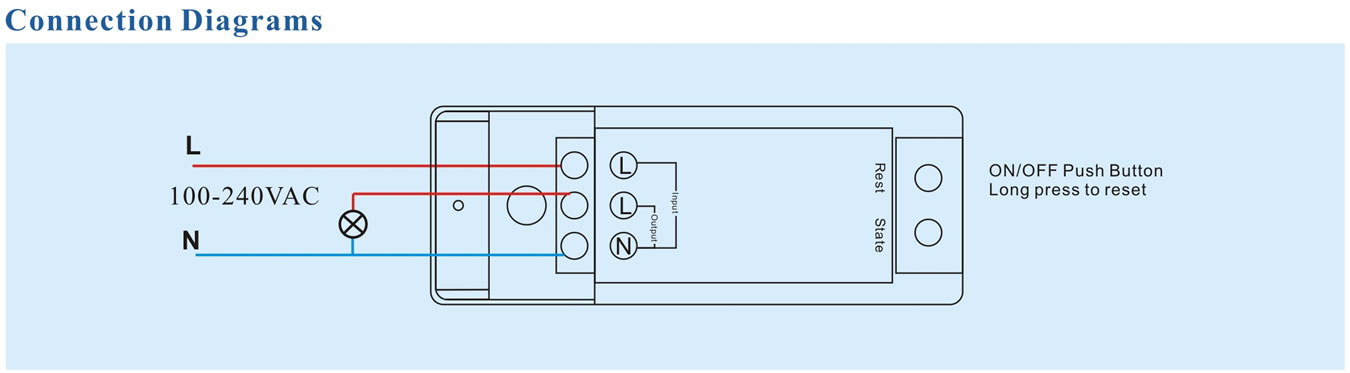

  • Wiring Diagram
  • Function

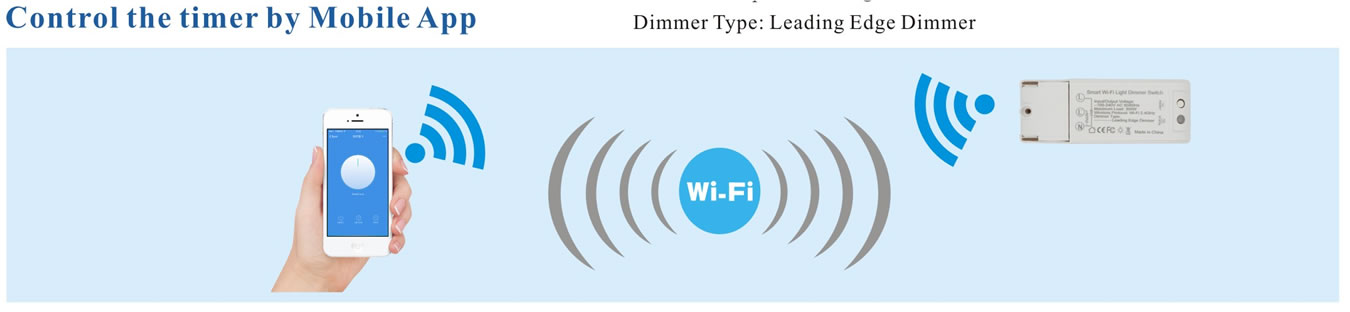

    ●Program timer, can set 100 On/Off programs one day or per week.
    ●If the product is disconnected from the network, the timer retains all programs sel up by Mobile App and works according to the set programs.
    ●With memory function, W hen the product contact is in the closc statc, after the power failure , and then call, the product contacts still keep the close state. :
    ●Can be share with 100 peoples by Mobile App.
    ●Simple installation, no need to change wiring, create a new smart lighting easily.

  • Technical data
    Rated Voltage: 100-240VAC 50-60Hz
    Max Load: 300W
    Inpt Max Current: 2A
    WiFi Frequency: 2.4GHz
    Mounting: Screw mounting
    Ambient temperature range: -10...+60C
    Dimmer Type: Leading Edge Dimmer
