Function

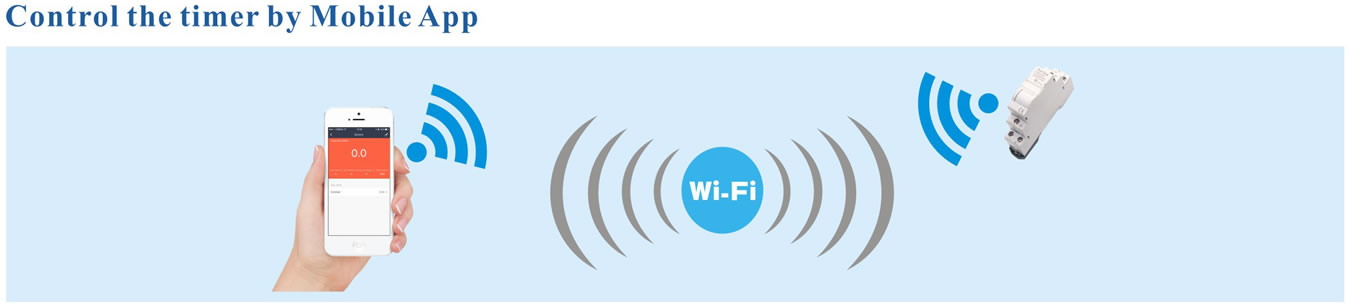

●In the App can display:
Today Ele (KWh),
Current Ele (mA),
Current Power (W),
Current Voltage (V),
Total Ele (KWh)

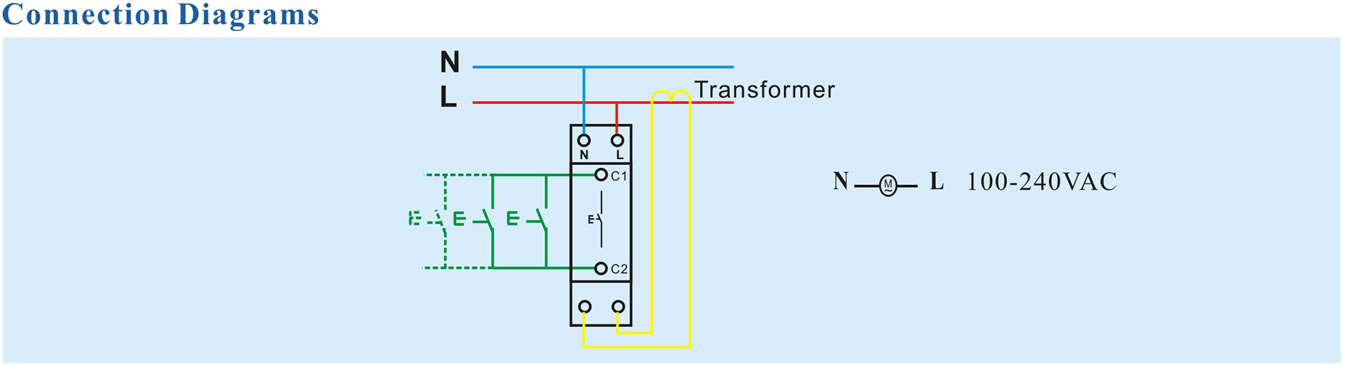

●Also can controlled by buttons from terminal CI and C2.
●Can be share with 20 users by Mobile App.
●The Current Transformer can open.
Technical data
Rated Voltage: 100-240VAC 50-60Hz
Operating range AC (50Hz): (0.8...1.1)UN
Rated power: 2.2VA/0.7W
WiFi Frequency: 2.4GHz
Mounting: DIN Rail 35 mm(EN 60715)
Ambient temperature range: -20C...+60C
