Range of electronic staircase timers
18mm wide
Time setting from 30 seconds to 20 minutes
ero crossing load switching
witch-off early war ning
Suitable for 3 or 4 wire systems, with automatic recognition
LED status indicators
Cadmium free contact material
Can be used with illuminated push - buttons
Technical data
|
Contact specification |
||
|
Contact configuration |
1NO(SPST-NO) |
|
|
Rated current/Maximum peak current |
16A |
|
|
Rated voltage/Maximum switching voltage |
230V AC |
|
|
Rated load AC1 |
3700 VA |
|
|
Rated load Ac15 (230 V AC) |
750 VA |
|
|
|
Nominal lamp rating: 230V incandescent/halogen |
3000W |
|
fluorescent tubes with electronic ballast |
1500W |
|
|
fluorescent tubes with electromechanical ballast |
1000W |
|
|
CFL |
600W |
|
|
230V LED |
600W |
|
|
LV halogen or LED with electronic ballast |
600W |
|
|
LV halogen or LED with electromechanical ballast |
1500W |
|
|
Minimum switching load mW (V/mA) |
1000(10/10) |
|
|
Standard contact material |
AgSnO2 |
|
|
Supply specification |
|
|
|
Nominal voltage (UN) |
230V AC(50/60Hz) |
|
|
Rated power |
3VA/1.2W |
|
|
Operating range AC (50 Hz) |
(0.8...1.1)UN |
|
|
Technical data |
|
|
|
Electrical life at rated load in AC1 cycles |
1x105 |
|
|
Delay setting |
0.5...20min |
|
|
Max no. of illuminated push-button (≤1 mA) |
30 |
|
|
Maximum impulse duration |
continuous |
|
|
Ambient temperature range |
-10 ~ +60 |
|

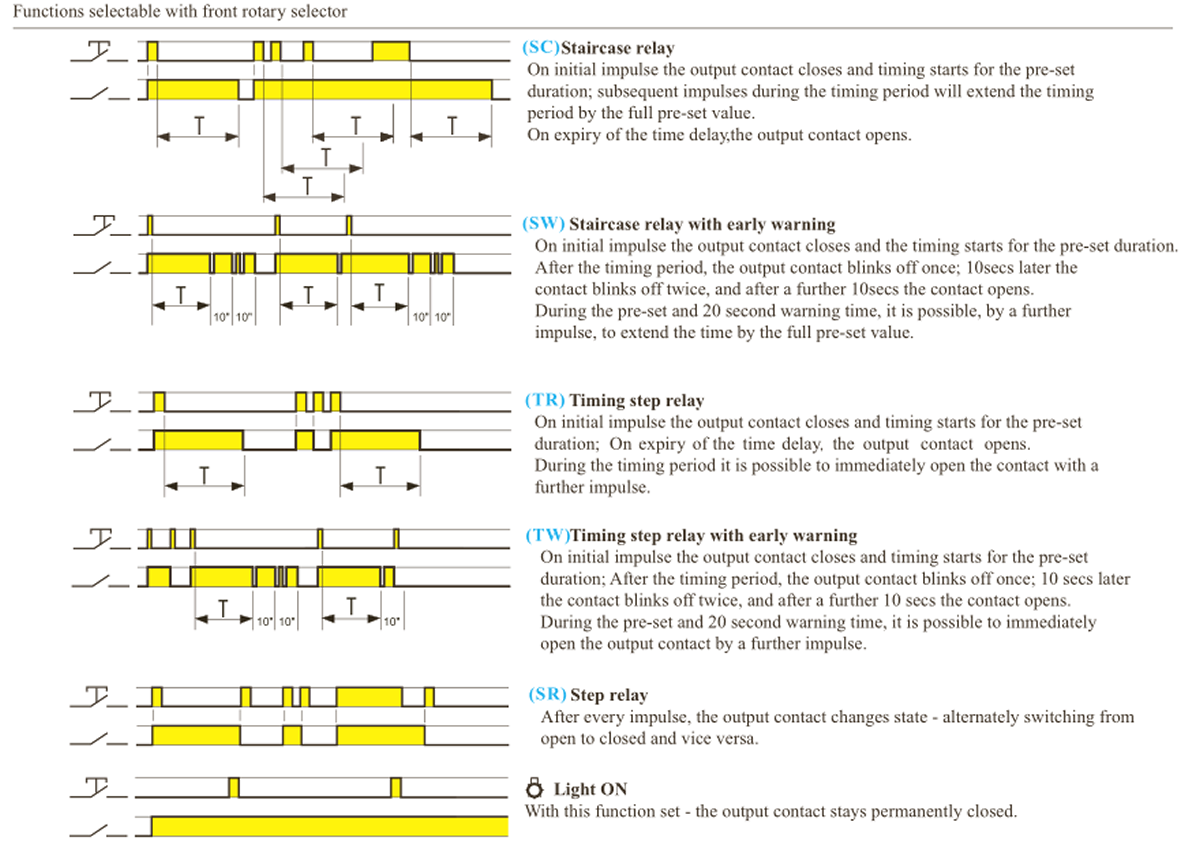

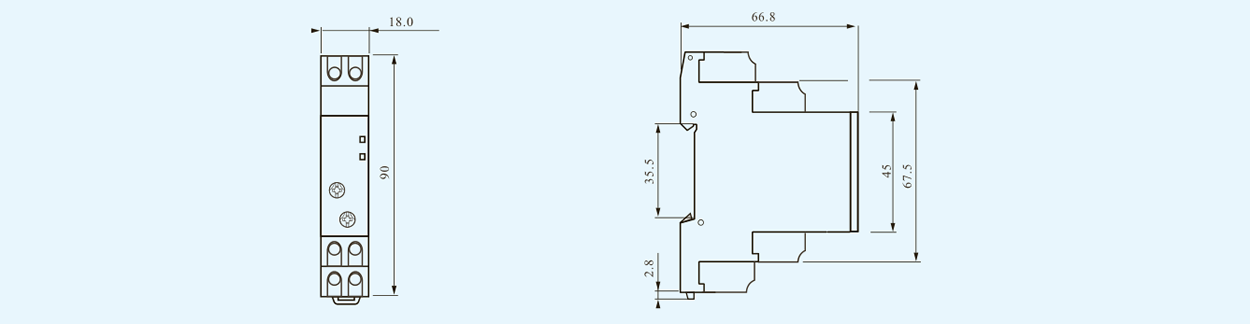

Dimensions(mm)

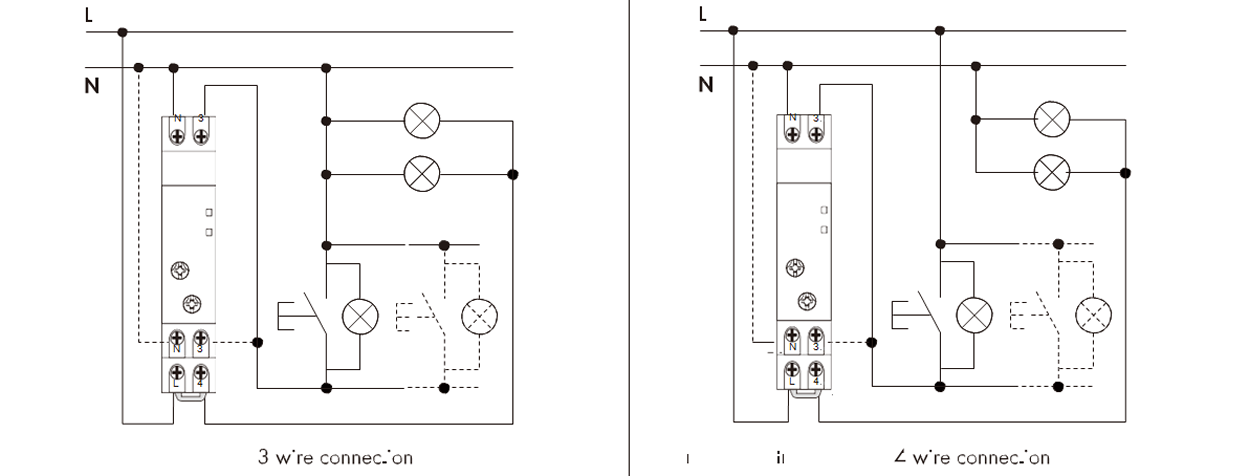

Wiring Diagrams
