ATMT2 On-Delay Modular Time Relay

Applications:

·Multifunction time relay can be used for electrical appliances, control of

Lights, eating, motors, pumps and fans(10 functions, 10 time ranges,

multi-voltage).

Features

·10 Functions: 5 time functions controlled by supply voltage

4 time functions controlled by control input

I function of latching relay

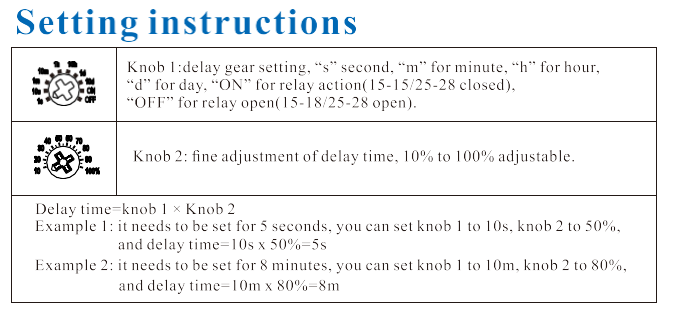

·Comfortable and well-arranged function and time-range setting by totary

switches.

·Time scale 0.1S to 10 Days divided into 10 ranges.

·Relay status is indicated by LED.

·1 Module, Din Rain mounting.
