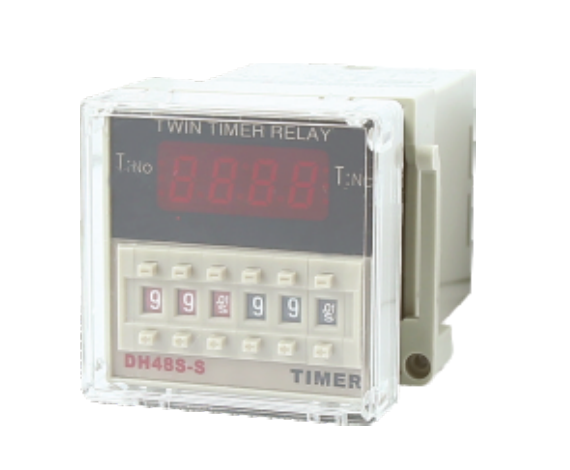

DH48S-S-1Z/2Z/2H

Classification

Twin Timer

Model

DH48S-S-1Z

DH48S-S-2Z

DH48S-S-2ZH

Appearance

Dimensions

48H×48W×81.6D

Mounting

&Socket

Surface(-n)

PF083A,PS-08,P2CF-08

Flush(-y)

US-08,P3G-08

FullTimingRange

0.01S~990H

RatedVoltage

DC(V):12,24

AC(V):12,24,110,220,240,380, 50/60Hz

Display

LED

OutputContact

Model

DH48S-S-1Z

DH48S-S-2Z

DH48S-S-2ZH

TimeLimit1c

5A

PAUSE

&REST

5A

TimeLimit2c

5A

Instantaneous  1c

5A

Life

Mechanical

5×106times

Electrical

105times

Accuracy

RepeatError

±0.5%max

SettingError

±0.5%max

VoltageError

±0.5%max

Temp.Error

±0.5%max

ResetTime

0.1sec max

ConsumedPower

2VA

AmbientTemperature

-10℃~+55℃

AmbientHumidity

48~85%RH

Weight

160g
