Multifunction Electric Power meter

Products Info

>>   Category:Digital Electric Power Meter

>>   Download Link

>>   E-mail:aultop@aultop.com.cn

>>   Tel:+86-577-62777339

Share to:

 Get a Quote

GET GUOTES

  X
Submit
  • Feature
  • Technical Parameters
  • Dimensions
  • Wiring Diagram

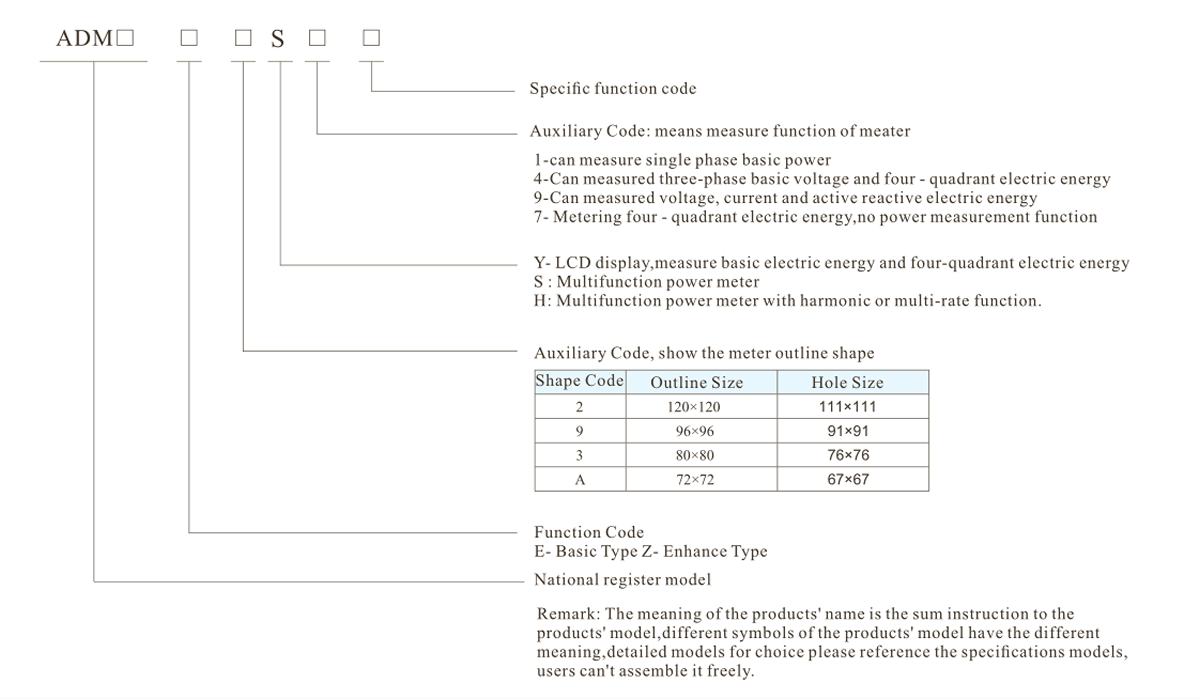

  • Multifunction Electric Power meterWith programmable measurement, display, digital communication and Power pulse transmission output function,It can complete the electricity measurement, energy calculation, data display, transmission, can also be widely used in substation automation, power distribution automation, intelligent building, enterprise internal energy measurement, management, assessment. measurement accuracy 0.5class, achieve LED/LCD Live display and RS485 remote digital interface communication,Adoption of Modbus-RTU agreement.
    PD1194Z series Mulitifunction Electric Power meter based on PD1194E series to increase 8way switching input Sn(n=1~8) or 4way relay alarmoutput Rn(n=1~4)/4way analog transmission output An(n=1~4). Switching input Sn In the switch state, relay alarm can be Remote monitoring.
    H series Multi - function harmonic table, on the basis of above two serie to increase of harmonic multi-rate function, can measure the voltage and current total harmonic content,2~31 times parity fraction content,Voltage and current unbalance degree,4 rates,8 periods,2 time zones.

  • Technical Index

    Indicator

    Class of Precision

    Current ,Voltage ,active energy :0.5 reactive energy 1, frequency :±0.1

    Display

    LED OR LCD

    Input

    Nominal Input

    VoltageAC100V、400Vetc.；Current AC1A、5A etc.

    OverLoad

    Voltge/Current continued：1.2time，Instantaneous：2 time

    Frequency

    40 ～ 65Hz

    Power

    Working Range

    AC220V；AC/DC85 ～ 270V

    Power  consumption

    ＜ 5A

    Transmitting Output

    DC4-20mAwhen current output load ＜ 510Ω，DCO-5Vwhen voltage output load ＞ 20KΩ

    Communication Port

    RS-485port，Modbus-RTUprotocol ，Baud rate 9600select 2400，4800）bps

    Relay Output

    relay output，relay contact capacity：AC5A/250V impedance，DC5A/30 impedance

    Switching Value input

    Switching input,stem node piont ，R ＜ 500Ω on；R ＞ 100KΩ off

    Isolation resistance

    power and input ＞ AC2KV，power and output ＞ AC2kV，Output and Input ＞ AC1KV

    Insulation resistance

    ≥ 100MΩ

    Average no fault working time

    ≥ 5000h

    Working Condition

    Ambient Temperature ：-10-55℃，Relative Humidity ≤ 93%，no aggressive gas

    Save Environment

    -20-75℃，relative humidity ≤ 93%

    Altitude

    ≤ 2500m

  • Outline Dimension Table

    Outline Code

    Frame Dimension

    (mm 2)

    Loading Screen With Dimension   (mm 2)

    Cutout Dimension

    (mm 2)

    Installation depth          (mm )

    (not including frame thickness)

    1

    160×80

    151×75

    152×76

    76

    2

    120×120

    110×110

    111×111

    108×108

    55.5Series /2 M /2K4）

    93.5（Other）

    3

    80×80

    75×75

    76×76

    75

    4

    120×60

    115×55

    116×56

    93

    5

    96×48

    90×43

    91×44

    117

    9

    96×96

    90×90

    91×91

    88×88

    75

    A

    72×72

    66×66

    67×67

    75

    D

    48×48

    44.5×44.5

    45×45

    89
